| Min. Order: | 50 Piece/Pieces |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, T/T, WU |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air |
| Production Capacity: | 6000pcs/month |
| Packing: | Standard export... | Delivery Date: | 1-10 working days |
|---|---|---|---|
| Product Material: | Steel | Open Style: | Automatic |
| Special Function: | Security | Position: | Commercial |
| Brand Name: | VEZE | Type: | Brushless DC motor |

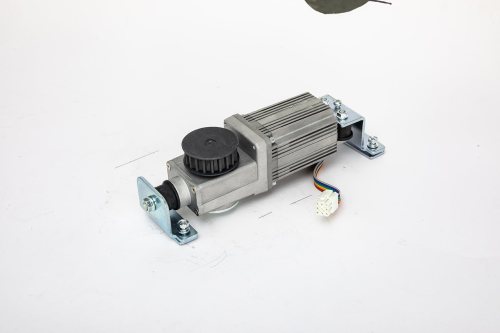

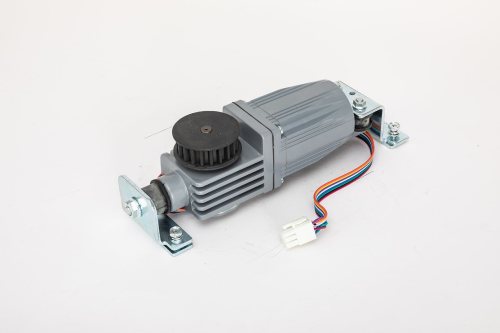

Technical specifications of automatic door 24V 55W brushless DC motor:
Power supply | 24VDC 55W |
Rated torque of bare motor | 0.22N.m |
Starting torque of bare motor | 0.85N.m |
No-load noise of motor | <52dB |
Reduction ratio | 1:12 |
Rotational speed | 2400RPM |
Insulation resistance | >100MΩ |
Service life | 4000hrs |
Ambient request | ROHS |
Protection grade | IP44 |
Overall-dimension diagram of automatic door brushless motor:
Automatic door brushless DC motor
Category: automatic door motor
Related Category: automatic door photocells Automatic door controller automatic door sensor
Special Groups: automatic door accessory
