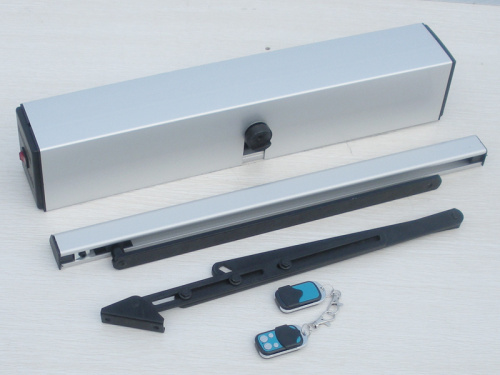

Automatic swing door openers

Model: SW100
Place of Origin: Zhejiang,China (Mainland)
Product Material: Stainless Steel
Special Function: Security
Position: Commercial
Open Style: Swing
Brand Name: VEZE
Type: Automatic swing door operator
Power Supplier: AC220±10V 50/60Hz
Surface Finishing: Finished
Port: Ningbo or Shanghai
Certifictae: ISO, CE
Lead time: 2-12 days after receiving payment

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:1.0 USDProduction Capacity:10000 units/month
Payment Terms:L/C, D/A, T/T, WUPacking:Wooden carton
Min. Order:1 Set/SetsDelivery Date:2-12 days
Means of Transport:Ocean, Air

VEZE SW100 automatic swing door opener is 90 degree automatic swing door operator with bearing load max.120kgs. With deluxe and functional design, encoding technology, and multiple connection terminals for different access controll devices, it is much more superior in smooth and stable operation than the traditional models.

It has passed CE and ISO. The swing door opener shall pass 2 million-cycle durability tests to make sure its excellent safety and reliablity.  And it has 2 year quality gurantee. During the warranty period, we'll replace the problemed items with new ones for free.


SW100 swing door opener functional characteristics:

Double-door synchronous function: With double-door Synchronizer, double doors(master door and slave door) could open and close synchronously. When double opening, open first and close second is the master door, close first and open second is slave door, master door turn K2 down, and slave door turn K2 up.  When double-door synchronous function is chosen, sensors and acess control system are connected to master door controller.

Push and go function: No need to push with force, turn K3 up to choose this function.

Safety anti-clip function: The door will go backward when people or moving obstacles approach while closing, which prevents the clamp injury or damage of the door itself

Low power consumption: Advanced brushless motor and gear reducer are integrated in the opener. With power consumption 50W, high efficiency, great torque and low noise, it is quite energy saving and has long lifespan.

Emergency backup battery(UPS):  Backup battery can be connected with power management terminal, which will support the door open and close 400 cycles when power failure or the fire broke out

One Key Recovery: The door expert set all parameters for you at any moment with One Key Recovery.

It is designed to meet market demands for dependability, low noise, and application flexibility, and
suitable for washing room, security door, office door, hospital door, apartment door, etc.

Multiple access control devices(optional):
A. Sensors: Microwave sensor,Infrared sensor, foot sensor, hand sensor, safety beam sensor
B. Password: Password or finger print identification access
C. Card: IC card, RFIC card
D.Button switch: Elbow touch, foot touch and long-distance induction buttons
E: Lock: Manual bolt lock, Magnetic lock, Electronic bolt lock


Features of automatic swing door opener(SW100)

1.Microcomputer technology, push and open function

2. Modular design, maintenance-free construction, easy installation and replacement

3. With intelligence self-protection of overheat and overload, automatically reverse upon obstruction during the process of opening and closing, safe and reliable

4. Electromagnetic lock control, ensure safety of the building

5. Intelligent control system with adjustable parameters

6.Advanced brushless motor with lower consumption,energy saving, high efficiency, great torque, low noise and long service life.
7. The door can be connected with remote control, password reader, card reader, microwave sensor, exit switch, fire alarm, etc.

8. Safety beam protects the guest from bumping the door, safe and reliable.

9. Optional backup battery can ensure the normal operation in case of power failure
10. Compatible with all safety devices
11. 24VDC 100W brushless motor, the motor transmission is simple and stable. Adopt worm and gear decelerator, super silence, no abrasion.
12. Adustable opening angle(90º-120º)


Technical specifications of automatic swing door opener(SW100)

Door style

Single-leaf

Open  angle

90 degree, max.120 degree

Door  width

Max.1200mm

Door leaf weight

Max.100kg

Opening  time

3~9s(adjustable)

Closing  time

3~9s(adjustable)

Hold open time

1-30s(adjustable)

Power  supply

AC110V-AC220V   50Hz-60Hz

Brushless motor

24VDC 50W



Manual force

Max. 30N

Operation  noise

≤ 55dB

Ambient temperature

-20°C~60°C




Working procedures of automatic swing door opener(SW100):

Activated by the signals from external control device→unlock→open→buffer action&stop→hold open→close→buffer action&stop→lock


Picture of automatic swing door opener(SW100) with pull arm


Picture of automatic swing door opener(SW100) with push arm


Single open automatic swing door opener(SW100)


Double open automatic swing door opener(SW100)


Safety Certification
Our products have certificates of CE, UL, ROHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)

R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.

Sales & Services
VEZE Automatic Door Co., Ltd takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.

VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.

OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.

VEZE will never stop the pursuit of innovation with style. VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.

VEZE Competitive Advantages:
1. We are direct manufacturer & we have professional self design team, which is capable of satisfying the most demanding needs.
2. Our products have World Class Quality Testing. We have certificates of CE, UL, ROHS, TUV, CCC, ISO9001.
3. We provide 24-month warranty for all of our products.
4. We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation.
5. Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct.

6. We have large production capability and sufficient safety stock to ensure quick lead-time.
7. We are constantly innovating to launch new products every year.



Packing of auto swing door operators
Auto swing door operators
