photocell automatic sliding glass door

Model: VZ-125A
Place of Origin: Zhejiang,China (Mainland)
Product Material: Stainless Steel
Special Function: Detector
Position: Commercial
Open Style: Automatic
Brand Name: VEZE
Surface Finishing: Finished
Type: Automatic sliding door operator
Power Supplier: 220V 50/60Hz
Special Function: Security
Port: Ningbo/Shanghai
Special Groups: Automatic sliding doors

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:10.0~300.0 USDProduction Capacity:10000 units/month
Trade Term:FOBPacking:carton box+bubble...
Payment Terms:L/C, T/T, WUDelivery Date:1-10 days after...
Min. Order:100 Set/Sets
Means of Transport:Ocean, Air

Specifications of photocell automatic sliding glass door

** ISO9001&CE certificated

** With high silicon rubber aluminum wheel hanger roller

** Hanger use imported roller bearing

** A highly intelligent multi-CPU control system, providing easy adjustable  function and high security performance

** Low noise design (<45db)

** Energy-saving, sound proofing

** When the power is off, can choose the backup batteries to keep the door in normal operation

Technical data of photocell automatic sliding glass door:

Gate sliding modes

Single-opening

Double-opening

Gate leaf weight

≤1*125 kg

≤2*115 kg

Gate leaf width

600-1200mm

500-1150mm

Opening speed

150-450mm/s(Adjustable)

150-420mm/s(Adjustable)

Closing speed

100-420mm/s(Adjustable)

100-400mm/s(Adjustable)

Motor

24V 55W brushless DC motor

Opening time

0-9second(Adjustable)

Impact function

Rebounding up on impact

Voltage

AC220V  50Hz-60Hz

Operating Temperature

-20°C~60°C



The occasions of photocell automatic sliding glass door

•Retail and Food Stores
•Government Buildings
•Restored Sites
•Hotels
•Restaurants
•Office Buildings
•Hospitals & Other Health Care Facilities
•Schools
•Retirement Homes
•Independent Living Centers
•Facilities for the Disabled
•Airports
•Villas



Features of photocell automatic sliding glass door

**Microcomputer intelligent control and humanized mechanical configuration.

**Powerful 24V DC reared motor provides excellent thermal equipped and quiet operator.Specially-designed sealing system has good tightness, ensuring no oil leakage

**Safety radar, ensure safe passage.

**Easy Installation: The 4.2meter length aluminum base is cut as specified, and all parts are mounted on the base at the factory.

**The unique self-locking function, need not extra accessories, full function remote control device, safe and reliable.

**Five different functions with remote control function keypad: Always open, half open, exit only, lock, normal open.

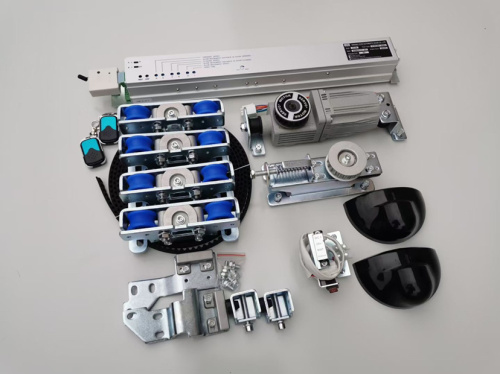

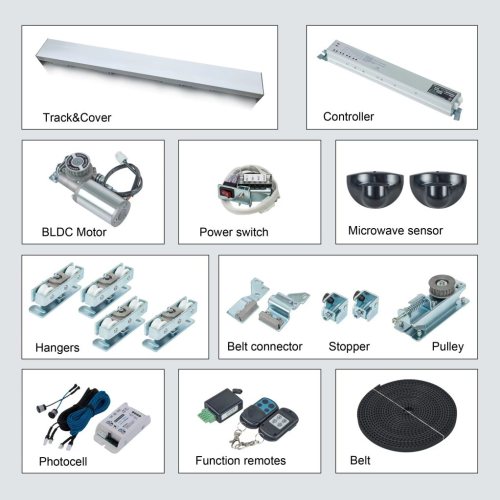

Picture of photocell automatic sliding glass door





Project of photocell automatic sliding glass door



To ensure a high level of sound insulation, VEZE Research & Development team, which makes project-specific calculations and develops new products, put forward the idea of inserting a special middle layer that reaches from panel to frame and acoustically seals off the room within. Special building structures are evaluated in VEZE's own CE certified acoustic laboratory.

R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.

Sales & Services
VEZE Automatic Door Co., Ltd takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.

VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.

OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.

VEZE will never stop the pursuit of innovation with style. VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.

VEZE Competitive Advantages:
1. We are direct manufacturer & we have professional self design team, which is capable of satisfying the most demanding needs.
2. Our products have World Class Quality Testing. We have certificates of CE, UL, ROHS, TUV, CCC, ISO9001.
3. We provide 24-month warranty for all of our products.
4. We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation.
5. Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct.

6. We have large production capability and sufficient safety stock to ensure quick lead-time.
7. We are constantly innovating to launch new products every year.
