Ningbo VEZE Automatic Door Co., Ltd.
detective glass sliding door, China detective automatic glass sliding door Manufacturer
|
| Model: | VZ-125 |
| Place of Origin: | Zhejiang,China (Mainland) |
| Product Material: | Aluminum Alloy |
| Special Function: | Security |
| Position: | Commercial |
| Open Style: | Sliding |
| Brand Name: | VEZE |
| Type: | Automatic sliding doors |
| Surface Finishing: | Finished |
| Hold Open Time: | 0~9s(adjust) |
| Special Function: | Secturity |
| Door Material: | Glass |
| Port: | Ningbo or Shanghai |
| Delivery Time: | 10 working days after payment |
| Special Groups: |
Automatic sliding doors |
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 10.0~299.0 USD | Production Capacity: | 8000 units/month |
| Trade Term: | FOB | Packing: | Wooden carton/case |
| Payment Terms: | L/C, D/P, T/T, WU | Delivery Date: | 1-12 working days |
| Min. Order: | 1 Set/Sets | ||
| Means of Transport: | Ocean, Air, Land | ||
1) Overall features and functions of detective glass sliding door:
(a) Muitiple choice automatic sliding doors suitable for both internal and external environments.
(b) Four operating options: fully automatic, half open, always open and always locked.
(c) The technical parameters can be adjusted to accommodate different conditions.
(d) Built-in microprocessor chip ensures the accuracy and precision of the operation.
(e) Automatically reverse back upon an obstruction.
(f) Infrared motion detectors and safety beam protects the passengers from bumping the door, safe and reliable.
(g) A wide range of functions and options ensures that automatic doors can operate smoothly according to individual needs in various environments.
(h) Advanced smart door technology with microprocessor intelligent control, makes it suitable for all purposes.
(i) Operation selection in manual operated activators, motion detectors, safety sensors, remote control, access control system, and programmable switch, etc.
(j) The 24V DC brushless gearmotor enables intensive usage with a very low degree of noise.
(k) Can be connected with all kinds of access control devices, make the system more safe and reliable.
(l) Can be interfaced with security systems and different types of locking systems.

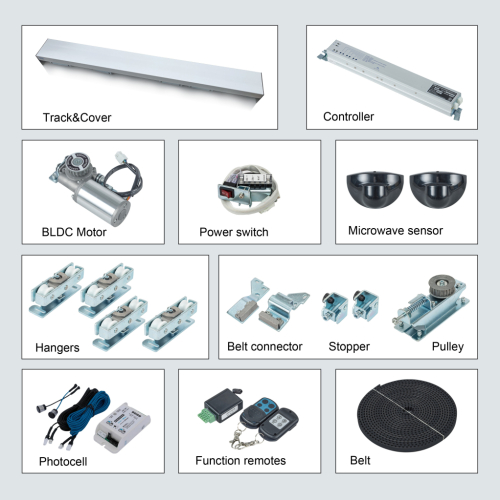

2) Standard configuration of detective glass sliding door:
Motor | 1 |
Controller | 1 |
Microwave motion sensor | 2 |
Driven wheel / Idler pulley | 1 |
Connector | 1 |
Hangers | 4 |
Link span(left) | 1 |
Link span(right) | 1 |
Stopper | 2 (left/right) |
Belt tensioner | 1 |
Fastenings | 1 set |
Aluminium beam | 2×2.1m |
Glass clamp | 1 |
Installation Manual & Warranty Card | 1set |
3) Schematic view of detective glass sliding door:
4) Dimensional drawing of detective glass sliding door:
5) Dimensional drawing of detective glass sliding door:
6) Picture of detective glass sliding door control system:
Category: Automatic sliding door
