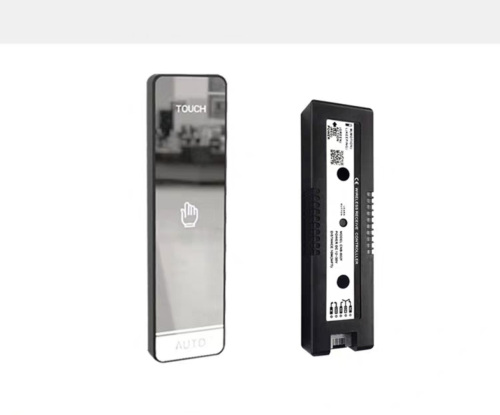

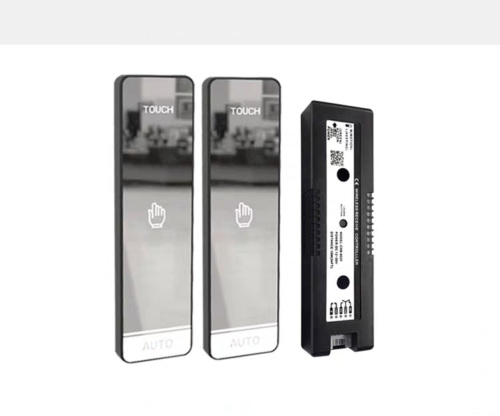

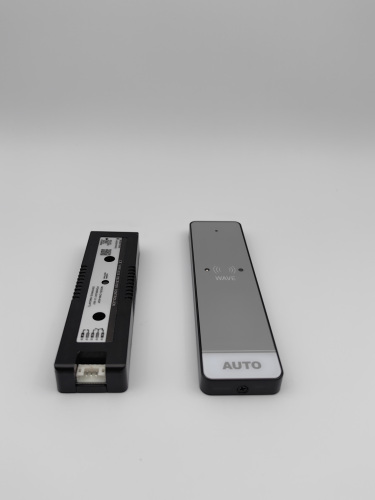

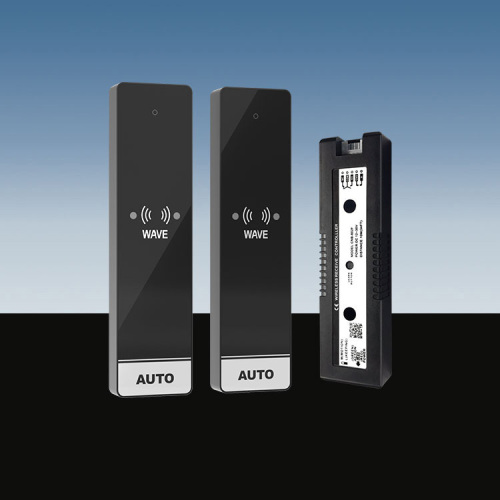

WIRELESS INFRARED TOUCH-FREE SWITCH

Product application

Widely used in automatic door and entrance or exit access  for activation function.

Overall characteristics

1.Long strip switch panel, wireless design, easy to install.

2.The hand induction adopt infrared demodulated, far  inductive distance, high sensitivity, and can be adjustable.

3.Adopt 2.4G wireless communication technology, unique  frequency hopping technology, high wireless transmitting  and receiving stability.

4.The switch adopt low consumption transmitting  technology, far transmitting distance, low power  consumption, long battery life.

5.The receiver adopt self-learning code, convenient for the  users to add switch in any time.

6.Wide power voltage input design, AC 12-30V power input.

7.When remote control effective, the blue light is on.

Technical parameter

Receiver

Power supply: DC 12-30V Static current: 34mA (DC 12V power) Action current: 62mA (DC 12V power) Main connect capacity: 1A DC 24V Connection holding time: 1.5s Sensitivity: -95dbm External dimension: 110(L) x 30(W) x 15(H) mm

Transmitter

Power supply: 3V (2 pcs 3V cell button) Standby current: ≤22μA (M mode) 40μA (K mode) Transmitting current: 10mA Infrared modulated frequency: 38KHz Infrared scanning interval: 330ms (M mode) 250ms (K mode) Battery life: 220 times / day, about 190 days Induction distance: 3-450px adjustable Transmitting distance: about 30 meters External dimension: 135(L) x 36(W) x 10(H) mm
