Microwave infrared sensors for glass door manufacturers and suppliers in China

Min. Order:	100 Piece/Pieces
Trade Term:	FOB
Payment Terms:	L/C, D/P, T/T, WU
Place of Origin:	Zhejiang, China (Mainland)
Means of Transport:	Ocean, Air
Production Capacity:	10000pcs/month

Packing:	Standard	Delivery Date:	1-7 working days
Product Material:	Plastic	Open Style:	Automatic
Special Function:	Detector	Position:	Commercial
Brand Name:	VEZE	Type:	Infrared motion sensor

Features of Microwave infrared sensors for glass door:
* Automatic door microwave sensor

* Microprocessor control
* Adjustable detection area

* High sensitivity and accurate detection

* Neat and concise design

* Superior stability, immune to the effects of external factors like wind, rain, cold, insects,etc.

Technical specifications of Microwave infrared sensors for glass door

Frequency	10.525GHz
Power supply	AC/DC 12-24V 50Hz-60Hz
Technology	Microwave and microprocessor
Transmitting power density	<5mW/cm²
Ambient temperature	-20~60 degree
Relative humidity	0-95%
Detection range	4m(W)× 3m(D)
Maximum installation height	3m
Working mode	LED indicator light
Detection angle	Horizontal 120°, Vertical 80°
Weight	220g
Protection grade	1P 54

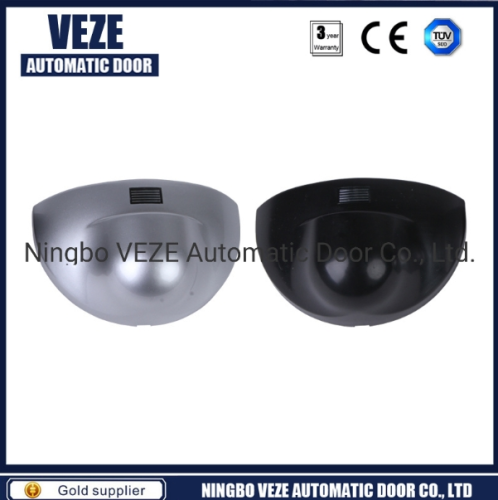

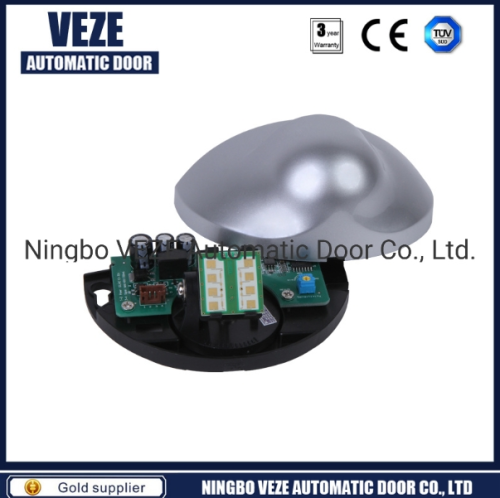

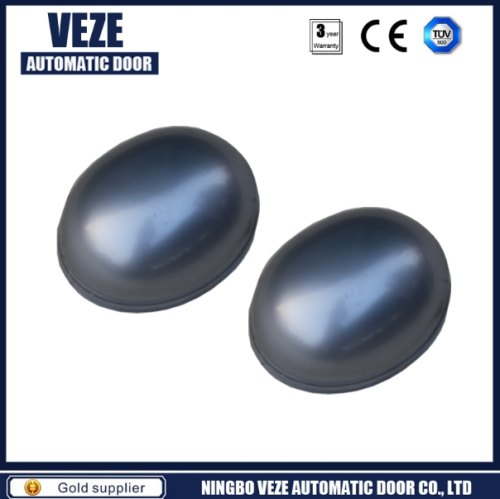

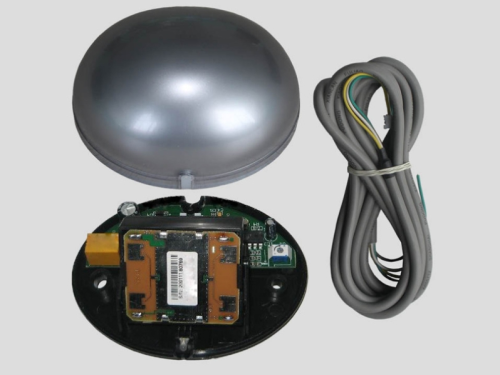

Picture of microwave infrared sensors

Safety Certification
Our products have certificates of CE, UL, ROHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)

R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.

Sales & Services
VEZE Automatic Door Co., Ltd takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.

VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.

OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.

VEZE will never stop the pursuit of innovation with style. VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.

VEZE Competitive Advantages:
1. We are direct manufacturer & we have professional self design team, which is capable of satisfying the most demanding needs.
2. Our products have World Class Quality Testing. We have certificates of CE, UL, ROHS, TUV, CCC, ISO9001.
3. We provide 24-month warranty for all of our products.
4. We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation.
5. Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct.

6. We have large production capability and sufficient safety stock to ensure quick lead-time.
7. We are constantly innovating to launch new products every year.
