Safety beam for automatic doors

Place of Origin: Zhejiang,China (Mainland)
Product Material: Others
Special Function: Detector
Position: Others
Open Style: Automatic
Brand Name: VEZE
Category: Automatic door photocell
Special Groups: automatic door accessory

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:2.0~20.0 USDProduction Capacity:10000 sets/month
Trade Term:FOBPacking:Standard export...
Payment Terms:L/C, D/P, D/A, T/T, WUDelivery Date:1-7 working days
Min. Order:100 Set/Sets
Means of Transport:Ocean, Air, Land

Overall features of safety beam for automatic doors:

a) Easy installation and debugging

b) Can work harmoniously with other sensors to ensure safety maximally

c) Infrared detection, strong anti-interference ability

d) Low power consumption, energy saving

e) Widely applied to automatic doors

f) Long transmitting distance, max. 10m
g) Single beam / double beam (optional)

Technical specifications of safety beam for automatic doors:

Voltage

DC/AC 12V-36V

Static current

25mA

Working current

40mA

Alarm current

100mA

Transmitting frequency

38MHz

Max. transmitting distance:

10m

Detection distance

6m

Hold on time

1-9s(adjustable)

Detection mode

Single infrared beam

Ambient temperature

-40~+45°C

Relative humidity10~90% RH
External wiresTransmitter wire (blue), 6m
Receiver wire (black), 6m
Dimensions123mm(L)*50mm(W)*32mm(H)

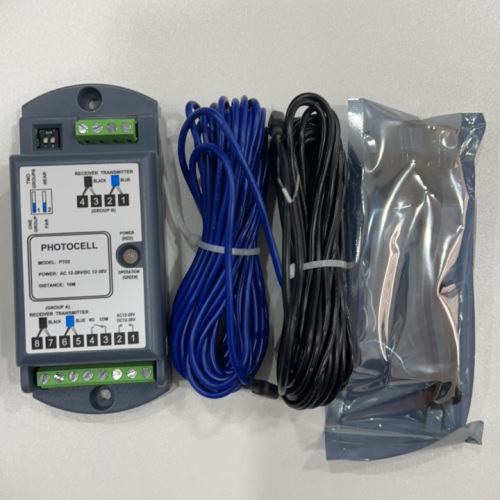

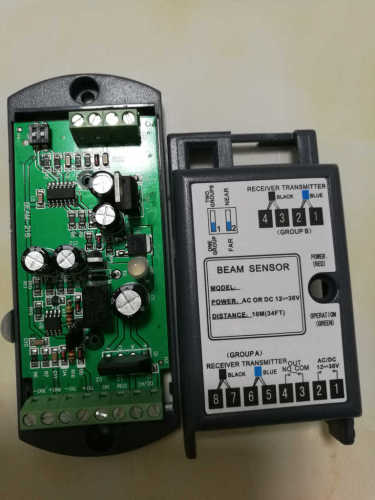

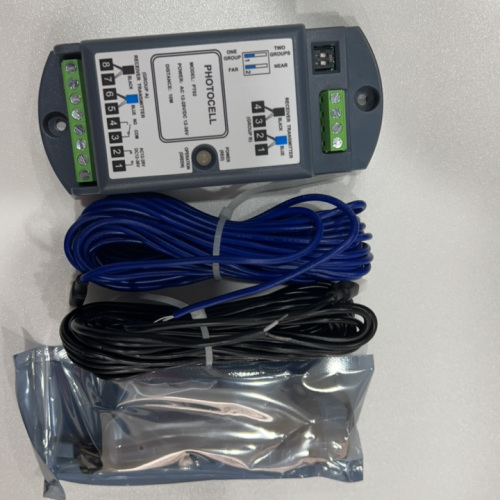

Picture of safety beam for automatic doors


Safety Certification
Our products have certificates of CE, UL, ROHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)

R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.

Sales & Services
VEZE Automatic Door Co., Ltd takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.

VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.

OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.

VEZE will never stop the pursuit of innovation with style. VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.

VEZE Competitive Advantages:
1. We are direct manufacturer & we have professional self design team, which is capable of satisfying the most demanding needs.
2. Our products have World Class Quality Testing. We have certificates of CE, UL, ROHS, TUV, CCC, ISO9001.
3. We provide 24-month warranty for all of our products.
4. We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation.
5. Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct.

6. We have large production capability and sufficient safety stock to ensure quick lead-time.
7. We are constantly innovating to launch new products every year.

Category: automatic door sensor

Related Category: Automatic door controller  automatic door motor  automatic door photocells
