| Min. Order: | 20 Piece/Pieces |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, T/T, WU |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air |
| Production Capacity: | 10000 pcs/month |
| Packing: | Standard | Delivery Date: | 3-10 days |
|---|---|---|---|
| Product Material: | Others | Open Style: | Automatic |
| Special Function: | Security | Position: | Others |
| Brand Name: | VEZE | Category: | Automatic door hand sensor switch |
| Port: | Ningbo/Shanghai |
Overall features of hand sensor switch for automatic doors
a)Adopt infrared modulation and demodulation, never make interference signal
b)No touch hand sensor switch, avoid contamination and keep hygiene and healthy
c)Low power consumption and long service life
d)High sensitivity, timely and accurate induction
e)Typical hidden emergency button, in case of induction failure, can press the emergency button to open automatic door
f)A wide range of power supply AC/DC 12~36V
g)With indicator light to ensure effective operation
h)Front hidden screw fixation
Accessories of hand sensor switch for automatic doors
a) Main sensor (one)
b) 5P plug wire (one)
c) Fixation screws (one bag)
d) Operation manual (one)
Technical specifications of hand sensor switch for automatic doors
Supply voltage | AC/DC 12V~36V |
Contact ratings | 3A/120V AC,30V DC |
Static current | 62mA |
Working current | 115mA |
Modulation and demodulation frequency | 38KHZ |
Detection mode | Active infrared reflection |
Ambient temperature | -20~50℃ |
Relative humidity | 10~90%RH |
Dimensions | 113mm(L)×63mm(W)×20mm(H) |
Protection grade | IP55 |
Detection distance | 1-15cm (adjustable) |

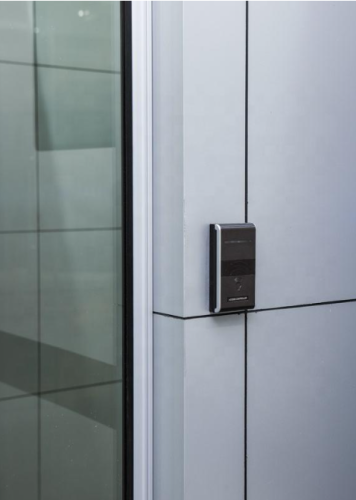

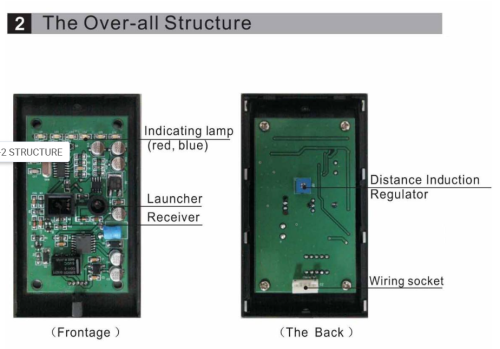

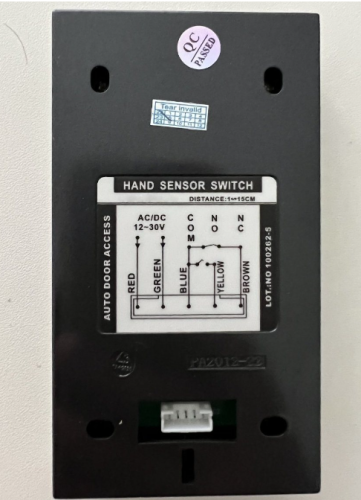

Picture of hand sensor switch for automatic doors
Category: Infrared sensor exit button
Related Category: Automatic door remote control Remote control switch Automatic door selector switch Auotmaic door switch for disabled fingerprint access control
Special Groups: automatic door accessory
