Waterproof Digital Card Reader

General description of waterproof digital card reader:

(a). Exquisite design, silver plated keypad with back light

(b). Output with protection function, waterproof and damp proof, suitable for outdoor use

(c). Multifunction device, can use as a WG26 card reader alone

(d). Three opening modes: card, code, card+code
(e). Waterproof degree: IP68
(f). Storage capacity: 3000 user's cars,3000 codes

Overall features of waterproof digital card reader:
1, Energy saving: Low power consumption, standby current is less than 30mA

2, Night vision function: With luminous keyboard, able to operate at night

3, Large storage capacity: 3,000 users

4, Independent password: Can use the password only

5, Users convenient: Users can change the password by themselves

6, Fast identification speed: Able to open the door in less than 0.1S.

7, Output short circuit protection function: System will automatically turns off output when the electric lock or alarm's output short circuit is within 100μS.

8, Wiegand output: Wiegand interface, support Wg26, Wg34

9, Safety protection function: In case some card is lost, the keyboard can remove the card number directly, completely eliminate security risks

10, Alarm system: There will be special built-in buzzer alarm sounds upon malfunction

Technical specifications of waterproof digital card reader:

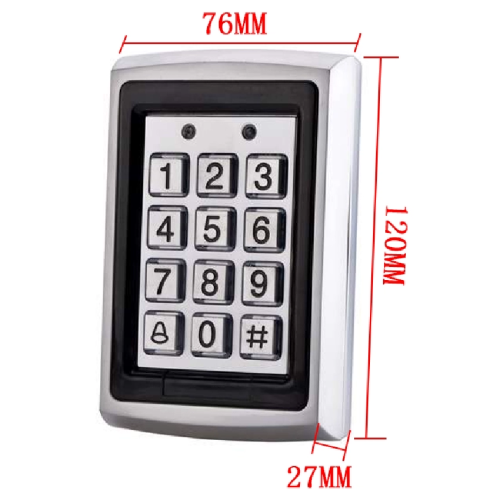

Picture of waterproof digital card reader
