Automatic curved sliding door

Place of Origin: Zhejiang,China (Mainland)
Product Material: Aluminum Alloy
Special Function: Security
Position: Commercial
Open Style: Sliding
Brand Name: VEZE
Type: Automatic curved doors
Special Groups: Automatic sliding doors

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:1.0~500.0 USDProduction Capacity:5000 units/month
Trade Term:FOBPacking:Carton+Wooden case
Payment Terms:L/C, T/T, WUDelivery Date:3-12 working days...
Min. Order:50 Set/Sets
Means of Transport:Ocean, Air

1) Overall features and functions of automatic curved sliding door:
(a)
Various sizes and radius adaptable to a wide range of requirements.
(b) Built-in intelligent microprocessor control chip to ensure the accuracy and precision of the operation.
(c) 24V brushless DC motor integrated with worm gear reducer, high efficiency, large torque, long lifespan, and low noise.
(d) The door can be manually opened at a power failure.
(e) The microprocessor operating parameters can be adjusted to accommodate various climatic conditions.
(f) Can be interfaced with all kinds of access control devices, make the system more safe and reliable.
(g) Microwave motion detectors and safety beam protect the passengers from bumping the door, safe and reliable.
(h) Automatically reverse back if an obstruction is in the way of the automatic sliding door opening or closing cycle.
(i) Modularization design allows a simple and easy installation
(j) Provide elegant and spacious entrance
(k)Two years warranty.
(l) ISO and CE certificates.

2) Technical specifications of automatic curved sliding door:
Door style
Bi-parting
Door leaf max weight
130kgX2
Door leaf width
600mm-1100mm
Semi-circular radius
minmum 1000mm
Power supply
AC160V-250V, 50-60 Hz
Opening speed
100-450mm/s (adjustable)
Closing speed
100-450mm/s (adjustable)
Creep speed
30-100mm/s (adjustable)
Hold-open time
0-9s (adjustable)
Hold-Close Force
70N
Manual Pushing Force
<40N
Power consumption
60W-180W
Ambient temperature
-20 ~ +50 ºC

3) Dimensional diagram of automatic curved sliding door:

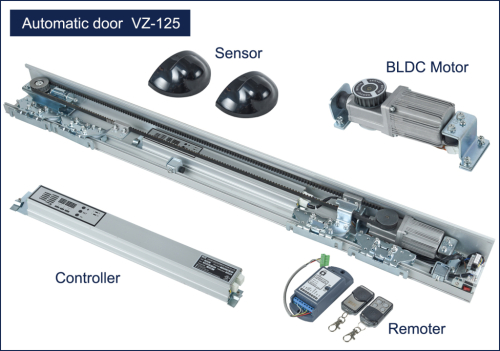

4) Picture of automatic curved sliding door:


Safety Certification
Our products have certificates of CE, UL, ROHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)

R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.

Sales & Services
VEZE Automatic Door Co., Ltd takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.
VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.

OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.

VEZE will never stop the pursuit of innovation with style. VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.
