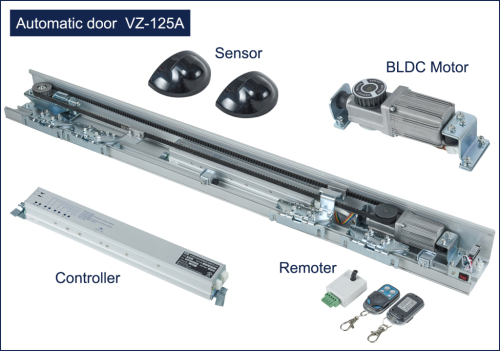

Automatic sliding door system with max. load capacity 120kgs

Automatic sliding door system 125A description:
The control system of automatic glass door contains basic function and extensional function. There are 4 working mode(automatic /hold-open/lock/half-open)could be chosen by operators with function keypad or switch to meet different needs. Control device has multiple interfaces for connecting various access control devices such as: remoter, safety beam photocell, electric lock, UPS, etc. Its drive device adopts modern brushless DC motor, which offers strong driving and reliable operation.

*Reliability:
Self-learn micro-computer controller
Automatic door operation is totally microcomputer optimized. Internal signal loops adopt no contact control mode, even after longtime working, opening and closing movement is still accurate. Door leaf position setting and adjustment, slide distance setting and adjustment, door leaf opening/closing speed setting and adjustment is accurately controlled by microcomputer controller.

*Security:
The door open and reverse immediately if meeting any obstacle.
When the doors is closing, if it meets a pedestrian or obstacle, the door leaf will reverse automatically,which prevents pinching events and protect passdengers' safety maximally.

*Convenience:
If the electricity is cut off, the door will stop moving. In this case,  door leaf can be opened manually with a little force. Good modular design offers very easy installation. Installers only need to fit all components into the guide rail and connect each part well, it can work after activating the power supply.

 Specifications:

** ISO9001&CE certificated

** With high silicon rubber aluminum wheel hanger roller

** Hanger use imported roller bearing

** A highly intelligent multi-CPU control system, providing easy adjustable  function and high security performance

** Low noise design (<45db)

** Energy-saving, sound proofing

** When the power is off, can choose the backup batteries to keep the door in normal operation

Technical data

The application occasions

•Retail and Food Stores
•Government Buildings
•Restored Sites
•Hotels
•Restaurants
•Office Buildings
•Hospitals & Other Health Care Facilities
•Schools
•Retirement Homes
•Independent Living Centers
•Facilities for the Disabled
•Airports
•Villas

Features

**Microcomputer intelligent control and humanized mechanical configuration.

**Powerful 24V DC reared motor provides excellent thermal equipped and quiet operator.Specially-designed sealing system has good tightness, ensuring no oil leakage

**Safety radar, ensure safe passage.

**Easy Installation: The 4.2meter length aluminum base is cut as specified, and all parts are mounted on the base at the factory.

**The unique self-locking function, need not extra accessories, full function remote control device, safe and reliable.

**Five different functions with remote control function keypad: Always open, half open, exit only, lock, normal open.

Pictures

Installation diagram

Our Automatic sliding fotoselli kapi be applied to frame or frameless door. Specially-designed cover, easy installation

Packing details

To ensure a high level of sound insulation, VEZE Research & Development team, which makes project-specific calculations and develops new products, put forward the idea of inserting a special middle layer that reaches from panel to frame and acoustically seals off the room within. Special building structures are evaluated in VEZE's own CE certified acoustic laboratory.

R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.

Sales & Services
VEZE Automatic Door Co., Ltd takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.

VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.

OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.

VEZE will never stop the pursuit of innovation with style. VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.

VEZE Competitive Advantages:
1. We are direct manufacturer & we have professional self design team, which is capable of satisfying the most demanding needs.
2. Our products have World Class Quality Testing. We have certificates of CE, UL, ROHS, TUV, CCC, ISO9001.
3. We provide 24-month warranty for all of our products.
4. We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation.
5. Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct.

6. We have large production capability and sufficient safety stock to ensure quick lead-time.
7. We are constantly innovating to launch new products every year.
