Automatic door waterproof access control keypad

Place of Origin: Zhejiang,China (Mainland)
Product Material: Stainless Steel
Special Function: Security
Position: Others
Open Style: Automatic
Brand Name: VEZE
Type: Automatic door access control
Special Groups: automatic door accessory


skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:1.0~40.0 USDProduction Capacity:8000 pcs/month
Trade Term:FOBPacking:Standard export...
Payment Terms:L/C, T/TDelivery Date:3-8 days
Min. Order:100 Piece/Pieces
Means of Transport:Ocean

General description of automatic door waterproof access control keypad:

(a). Exquisite design, silver plated keypad with back light

(b). Output with protection function, waterproof and damp proof, suitable for outdoor use

(c). Multifunction device, can use as a WG26 card reader alone

(d). Three opening modes: card, code, card+code
(e). Waterproof degree: IP68
(f). Storage capacity: 3000 user's cars,3000 codes

Overall features of automatic door waterproof access control keypad:
1, Energy saving: Low power consumption, standby current is less than 30mA

2, Night vision function: With luminous keyboard, able to operate at night

3, Large storage capacity: 3,000 users

4, Independent password: Can use the password only

5, Users convenient: Users can change the password by themselves

6, Fast identification speed: Able to open the door in less than 0.1S.

7, Output short circuit protection function: System will automatically turns off output when the electric lock or alarm's output short circuit is within 100μS.

8, Wiegand output: Wiegand interface, support Wg26, Wg34

9, Safety protection function: In case some card is lost, the keyboard can remove the card number directly, completely eliminate security risks

10, Alarm system: There will be special built-in buzzer alarm sounds upon malfunction

Technical specifications of automatic door waterproof access control keypad:

Working Voltage


Operating frequency

125 KHz

Static Current


Card-reading distance



3000 users,
3000 codes

Ambient Temperature


Ambient Humidity


Electricity lock output


Alarm output


Output short circuit protection time


Open time



120 *80*25mm

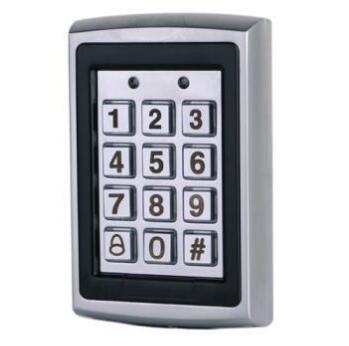

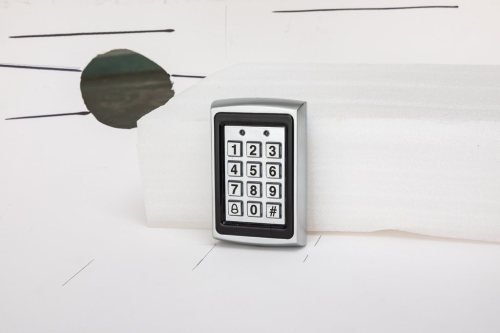

Picture of automatic door waterproof access control keypad:
