| Min. Order: | 50 Piece/Pieces |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, T/T, WU |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air |
| Production Capacity: | 10000 pcs/month |
| Packing: | Standard export... | Delivery Date: | 1-10 days after... |
|---|---|---|---|
| Product Material: | Aluminum Alloy | Open Style: | Automatic |
| Special Function: | Security | Position: | Commercial |
| Brand Name: | VEZE | Category: | Automatic door control system |
1) General information of controller for automatic sliding doors
(a) CE,ISO9001 approved
(b) Material: aluminium alloy
(c) Intelligent design
(d) Technical paramaters can be adjusted by screw driver
(e) Two years warranty
2) Overall features of controller for automatic sliding doors:
(a) Intelligent control system, easy operation and adjustment
(b) Automatic learning function, automatic inspection of the weight and width of the door, according to the results of inspection to keep doors in the best operating state.
(c) Complete functions can make users to choose various modes to open and close doors.
(d) Reasonable mechanical design, making installation and debugging simpler.
(e) Remote parameter setting interface in the controller, wireless remote parameter setting.
(f) Can be ibterfaced with all kinds of access control devices.
3) Technical specifications of controller for automatic sliding doors:
Door style | Single-opening | Double-opening |
Door leaf weight | ≤1*125 kg | ≤2*115 kg |
Door leaf width | 600-1200mm | 500-1150mm |
Opening speed | 150-450mm/s(Adjustable) | 150-420mm/s(Adjustable) |
Closing speed | 100-420mm/s(Adjustable) | 100-400mm/s(Adjustable) |
Motor | 24V 55W brushless DC motor | |
Opening time | 0-9second(Adjustable) | |
Impact function | Rebounding up on impact | |
Voltage | AC220V 50Hz-60Hz | |
Operating Temperature | -20°C~50°C | |

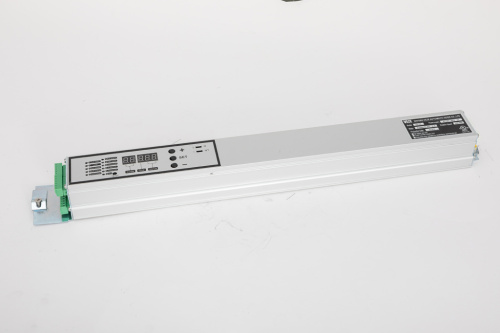

4) Picture of controller for automatic sliding doors:
