| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, T/T, WU |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air |
| Production Capacity: | 6000 units/month |
| Packing: | Wooden carton/case | Delivery Date: | 1-12 working days... |
|---|---|---|---|
| Product Material: | Aluminum Alloy | Open Style: | Sliding |
| Special Function: | Security | Position: | Commercial |
| Brand Name: | VEZE | Type: | Automatic sliding door operator |

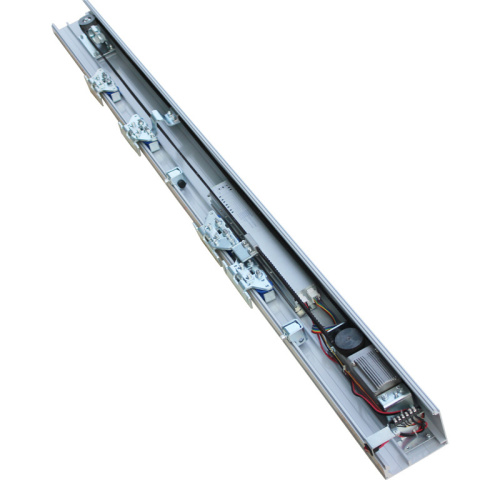

1) Overall features of heavy duty sliding door operators:
a. Automatic sliding door operators for heavy duty use, with high performance and optimal design
b. Excellent durability with 24VDC 100W brushless motor
c. The heavy duty sliding door system produces quiet and smooth operation
d. Single and double sliding doors suitable for various environments
e. Advanced smart door technology
f. Simple to programme and easy to adjust the technical parameters
g. Able to meet different environment's needs
h. Intelligent microprocessor control system with self-learning function
e. In case of a power failure, all of the programmed parameters remain in the computer's memory, if the door is not locked, the door can be operated manually.
j. The system is most suitable for heavyweight doors in large buildings and hospitals
2) Technical specifications of heavy duty sliding door operators
Door style | Single-winged | Bi-parting |
Door leaf max weight | 250kg | 250kg*2 |
Power Supply | AC220V ± 10%, 50-60Hz | |
Opening Speed | 300-600mm/s (adjustable) | |
Closing Speed | 200-500mm/s (adjustable) | |
Creep speed | 30-100mm/s (adjustable) | |
Motor | 24V 100W DC brushless motor | |
Hold-open time | 0-9s (adjustable) | |
Manual Pushing Force | < 100N | |
Power consumption | < 100W | |
Ambient temperature | -20~+50 °C | |
3) Application of heavy duty sliding door operators
