Ningbo VEZE Automatic Door Co., Ltd.
sliding glass door operator, China photocell sliding glass door operator Manufacturer
|
| Model: | VZ-155D |
| Place of Origin: | Zhejiang,China (Mainland) |
| Product Material: | Aluminum Alloy |
| Special Function: | Security |
| Position: | Exterior |
| Open Style: | Sliding |
| Brand Name: | VEZE |
| Type: | Sliding door operator |
| Power Supplier: | AC220±10V 50/60Hz |
| Surface Finishing: | Finished |
| Special Function: | Security |
| Port: | Ningbo or Shanghai |
| Warranty: | 2 years |
| Special Groups: |
Automatic sliding doors |
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 10.0~300.0 USD | Production Capacity: | 6000 units/month |
| Trade Term: | FOB | Packing: | Wooden carton/case |
| Payment Terms: | L/C, D/P, T/T, WU | Delivery Date: | 3-12 days after... |
| Min. Order: | 1 Set/Sets | ||
| Means of Transport: | Ocean, Air | ||
1) Features of sliding glass door operator(VZ-155D):
** Microprocessor control
**Advanced electric lock with self-testing function , ensure the doors are always secure.
** Energy saving power unit.
** Quick and simple installation, set-up and maintenance.
**Safety beam and safety photocell meke it more safe and more reliable.
**Can work excently with fingerprint switch, remote control, push button, access keypad, safety sensor, digital wireless video, etc .
2) Technical specifications of automatic sliding glass door operator(VZ-155D)
Gate sliding modes | Double-opening |
Gate leaf weight | ≤2*145 kg |
Gate leaf width | 500-1100mm |
Opening speed | 150-550mm/s(Adjustable) |
Closing speed | 120-500mm/s(Adjustable) |
Motor | 24V 60/100W brushless DC motor |
Hold open time | 0-9second(Adjustable) |
Special Function | Security ,Hermetic |
Voltage | AC220V 50Hz-60Hz |
Operating Temperature | -20°C~60°C |
3) Sectional diagram of automatic sliding glass door operator(VZ-155D)

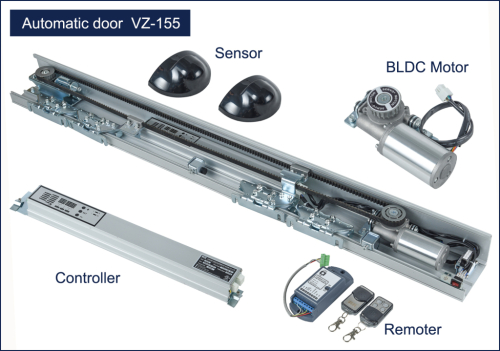

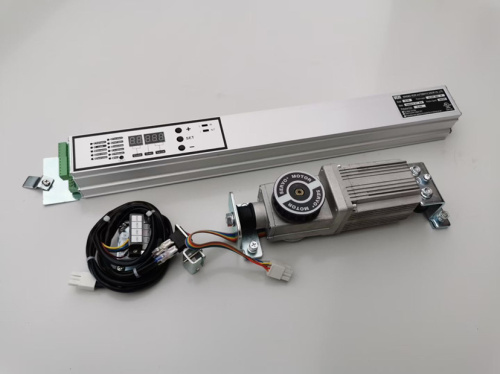

4) Picture of automatic sliding glass door operator(VZ-155D)
5) Application of automatic sliding glass door operator(VZ-155D)
VEZE Competitive Advantages:
1. We are direct manufacturer & we have professional self design team, which is capable of satisfying the most demanding needs.
2. Our products have World Class Quality Testing. We have certificates of CE, UL, ROHS, TUV, CCC, ISO9001.
3. We provide 24-month warranty for all of our products.
4. We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation.
5. Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct.
6. We have large production capability and sufficient safety stock to ensure quick lead-time.
7. We are constantly innovating to launch new products every year.
Category: Automatic sliding door
