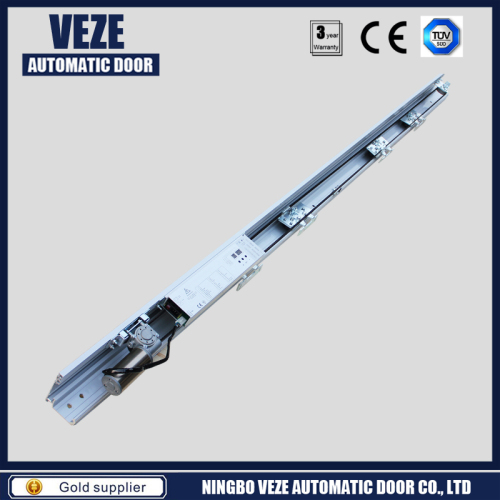

Airtight sliding door operators

Model: VZ-H
Place of Origin: Zhejiang,China (Mainland)
Product Material: Others
Special Function: Security
Position: Industrial
Open Style: Sliding
Brand Name: VEZE
Type: Hermetic sliding doors
Port: Ningbo or Shanghai
Hold Open Time: 0~9s(adjust)
Door Material: SS304 and foam
Surface Finishing: Finished
Special Function: Hermetically, Anti-bacteria
Delivery Time: 14 working days after payment
Special Groups: Automatic sliding doors

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:1.0~600.0 USDProduction Capacity:6000 units/month
Trade Term:FOBPacking:Wooden carton/case
Payment Terms:L/C, D/P, T/T, WUDelivery Date:3-12 working days...
Min. Order:1 Set/Sets
Means of Transport:Ocean, Air, Land

1) Features of airtight sliding door operators:

*Optimal sealing function, suitable for special use
*Intelligent control system with adjustable parameters
*Can be connected with foot sensor switch or hand sensor switch, convenient for users

*Effectively prevent wind, cold, dust and the spread of many infections
*Advanced brushless motor ensures silent operation
*Safe and reliable, safety sensor can accurately detect the passenger and ensure guest's safety.


2) Technical specifications of airtight sliding door operators:

Installation mode

Surface mounting

Door weight

<195kg

Door width

700-1500mm

Motor

24V 100W DC brushless

Opening speed

50-90cm/s(adjustable)

Closing speed

50-90cm/s(adjustable)

Opening time

1-9 second (adjustable)

Input voltage AC

175-240V  50/60Hz

Input voltage DC

24V/3.5A

Power consumption

5-10W  (related to all sensors)

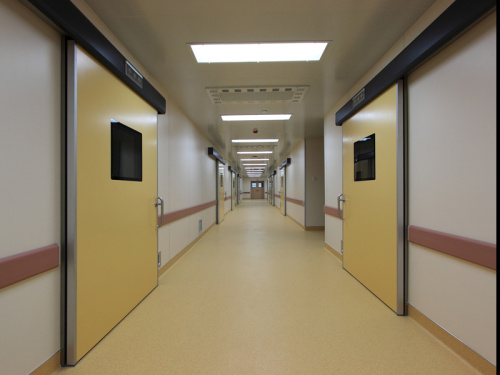

3) Application of airtight sliding door operators


4) Dimensional diagram of airtight sliding door operators


VEZE Competitive Advantages:
1. We are direct manufacturer & we have professional self design team, which is capable of satisfying the most demanding needs.
2. Our products have World Class Quality Testing. We have certificates of CE, UL, ROHS, TUV, CCC, ISO9001.
3. We provide 24-month warranty for all of our products.
4. We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation.
5. Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct.

6. We have large production capability and sufficient safety stock to ensure quick lead-time.
7. We are constantly innovating to launch new products every year.

Safety Certification
Our products have certificates of CE, UL, ROHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)

R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.

Sales & Services
VEZE Automatic Door Co., Ltd takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.

VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.

OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.

VEZE will never stop the pursuit of innovation with style. VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.
