VEZE Sliding Door operators

Model: VZ-195
Place of Origin: Zhejiang,China (Mainland)
Product Material: Others
Special Function: Security
Position: Commercial
Open Style: Sliding
Brand Name: VEZE
Type: Automatic sliding doors
Port: Ningbo or Shanghai
Surface Finishing: Finished
Delivery Time: 10 working days after payment
Door Material: SS304 and foam
Special Function: Hermetically
Hold Open Time: 0~9s(adjust)
Special Groups: Automatic sliding doors

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:350.0 USDProduction Capacity:5000 units/month
Trade Term:FOB,CFR,CIF,DDP,CPT,EXWPacking:Standard export...
Payment Terms:L/C, D/A, T/T, WUDelivery Date:1-10 days after...
Min. Order:1 Set/Sets
Means of Transport:Ocean, Air, Land


Features of VEZE Sliding Door operators:
Automatic sliding door operators(VZ-195) are designed for heavy duty use. They are suitable as automatic opener and closer for single, double, telescopic and curved automatic sliding doors.

** Single and double sliding doors suitable for both internal and external environments.
** Advanced smart door technology
** Simple to programme
** Easily adjusted to meet different environment's needs
** Intelligent microprocessor control system with self-learning function
** In case of power failure, all of the programmed parameters remain in the computers memory, if the door is not locked the door can be operated manually.


Technical specifications of VEZE Sliding Door operators


Door style

Single-opening

Double-opening

Door leaf weight

≤1*195 kg

≤2*190 kg

Door leaf width

600-1200mm

500-1150mm

Opening speed

200-650mm/s(Adjustable)

200-600mm/s(Adjustable)

Closing speed

150-550mm/s(Adjustable)

150-550mm/s(Adjustable)

Motor

24V 75~100W brushless DC motor

Opening time

0-9s(Adjustable)

Automatic function

Automatically reverse upon obstruction

Voltage

AC220V  50Hz-60Hz

Ambient temperature

-20°C~60°C

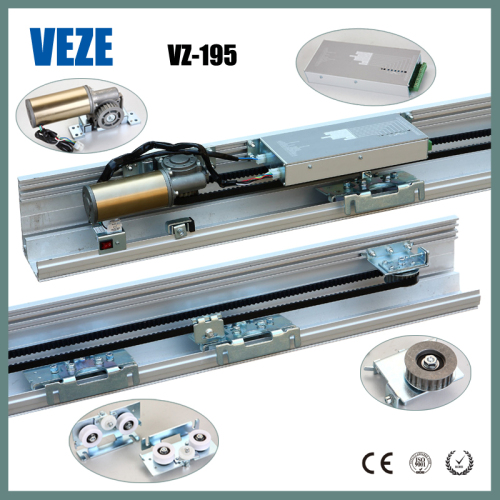

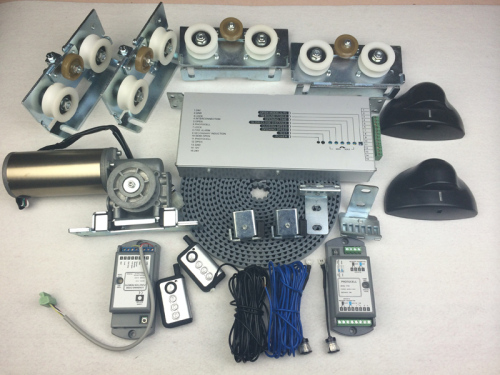

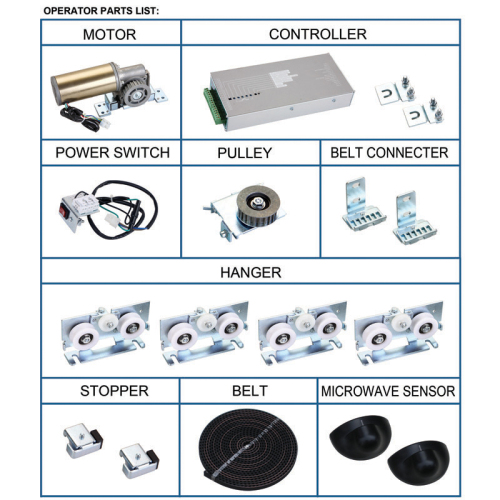

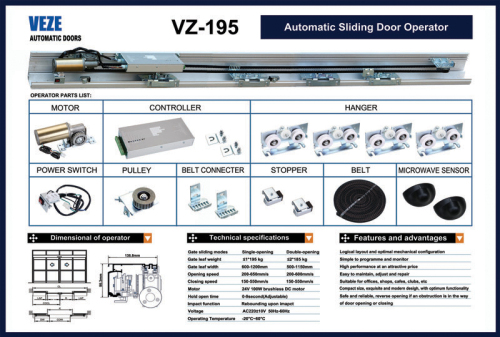

Picture of VEZE Sliding Door operators





Schematic drawing of VEZE Sliding Door operators(bi-parting)




Schematic drawing of VEZE Sliding Door operators(single-parting)

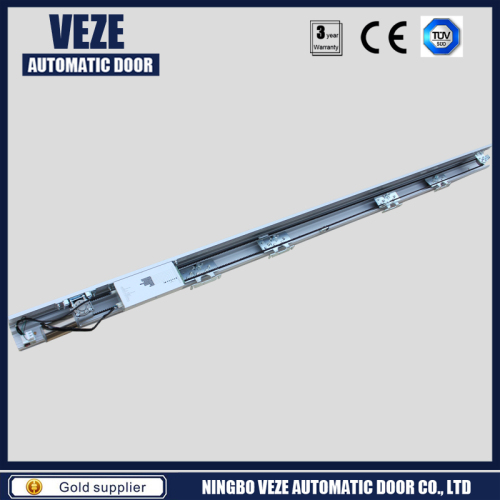

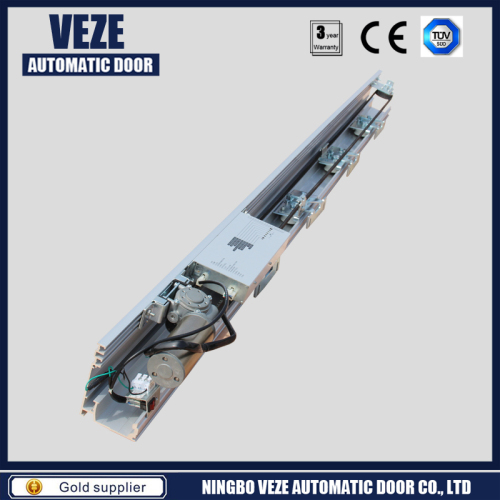

View of VEZE Sliding Door operators




Application of sliding VEZE Sliding Door operators



Safety Certification
Our products have certificates of CE, UL, ROHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)

R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.

Sales & Services
VEZE Automatic Door Co., Ltd takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.

VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.

OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.

VEZE will never stop the pursuit of innovation with style. VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.

VEZE Competitive Advantages:
1. We are direct manufacturer & we have professional self design team, which is capable of satisfying the most demanding needs.
2. Our products have World Class Quality Testing. We have certificates of CE, UL, ROHS, TUV, CCC, ISO9001.
3. We provide 24-month warranty for all of our products.
4. We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation.
5. Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct.

6. We have large production capability and sufficient safety stock to ensure quick lead-time.
7. We are constantly innovating to launch new products every year.
